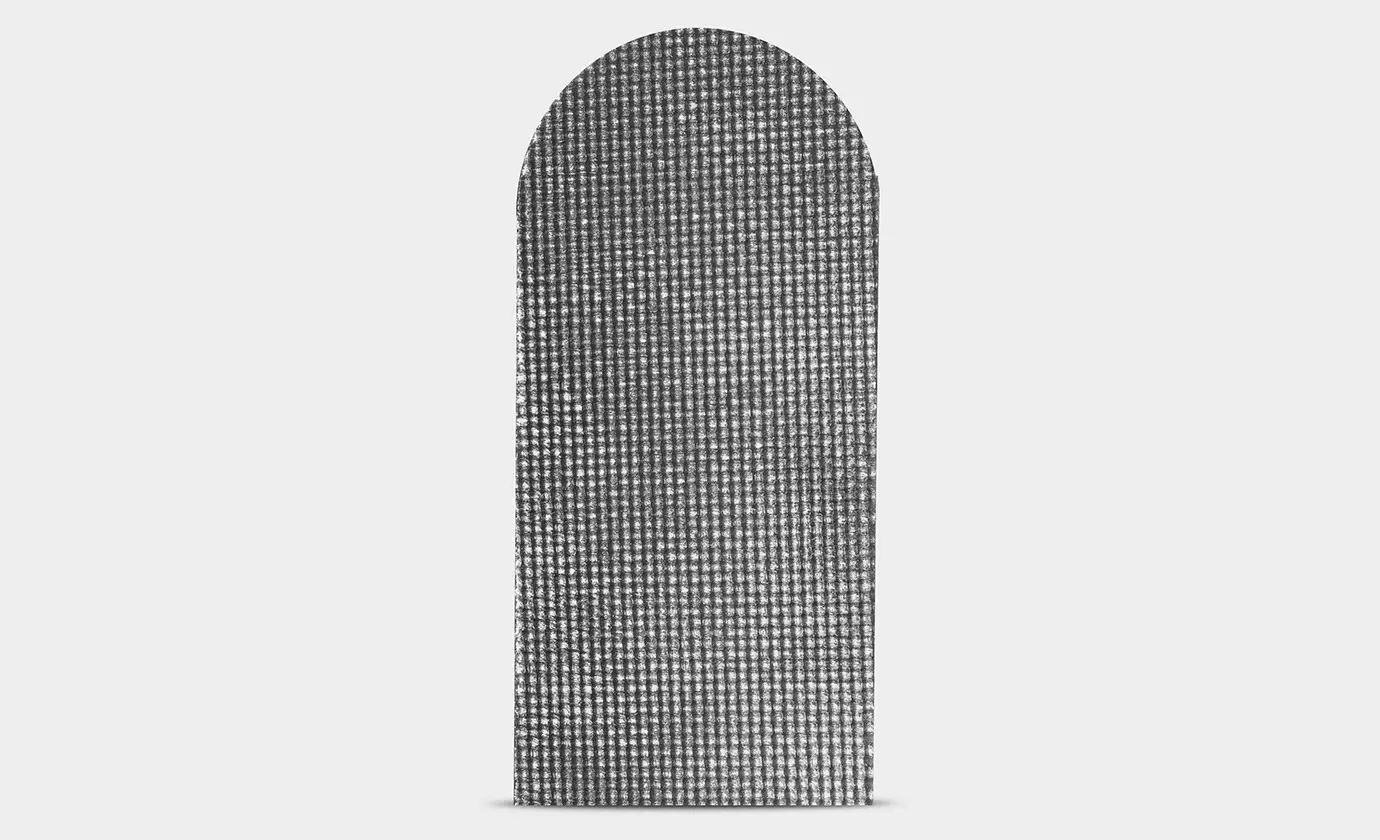

TL-Silver
The TL-SILVER is Fiber Glass Thermoplastic Composite Material which consists of two layers of plain weave, glass fabric with a silver resin, and acrylic core. All units have rounded heels to reduce trimming and grinding. This material facilitates deeper heel cups and it retains its rigidity and shape. The TL-SILVER is easily adjusted using a heat gun, and because of this, has a better fit and functional control. It is a lower cost alternative to other fiber glass thermoplastic composite materials.
Semi-Rigid (2.3mm)
Product # | Thickness | Size / Sheet Size |
SR7919S | 2.3mm | Size 1 ( 3″ x 7″ ) |
SR7922S | 2.3mm | Size 3 ( 3.5″ x 7.5″ ) |
SR7924S | 2.3mm | Size 4 (4″ x 8″ ) |
SR7927S | 2.3mm | Size 5 (4″ x 8.5″ ) |
SR7930S | 2.3mm | Size 6 (5″ x 9″ ) |
SR7937S | 2.3mm | Size 7 (6″ x 12″ ) |
Rigid (2.9mm)
Product # | Thickness | Size / Sheet Size |
R7819S | 2.9mm | Size 1 ( 3″ x 7″ ) |
R7822S | 2.9mm | Size 3 ( 3.5″ x 7.5″ ) |
R7824S | 2.9mm | Size 4 (4″ x 8″ ) |
R7827S | 2.9mm | Size 5 (4″ x 8.5″ ) |
R7830S | 2.9mm | Size 6 (5″ x 9″ ) |
R7837S | 2.9mm | Size 7 (6″ x 12″ ) |
Processing Information:
The TL-SILVER can be processed with conventional fabrication equipment, and the recommended heating conditions for all formulations is 3 – 5 minutes in a convection oven, pre-heated to 380-400 degrees F.
Shipping Information:
All TL-SILVER units are sealed in packages of 10 units (5 pairs) per package by the manufacturer. All sizes and grades may be combined with the TL-2100 for quantity discounts.
